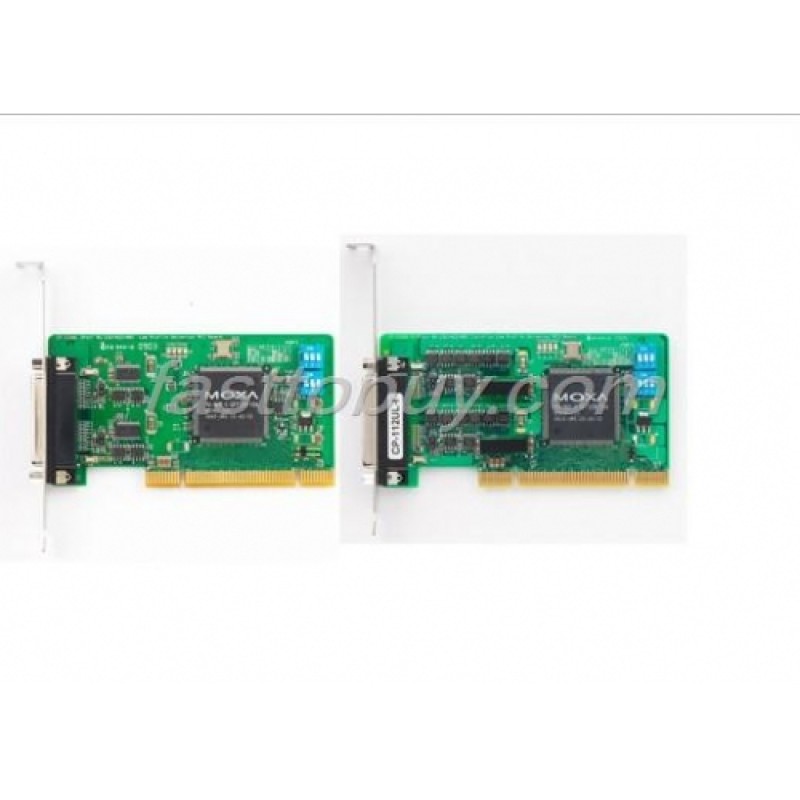

CP-112UL MOXA Universal PCI Multiple serial boards 2-port RS-232/422/485

If you need more than 10pcs and want to get better wholesale price, please feel free to contact us by following:
email:[email protected]
Tel:0086-574- 88333153
We will quote you our best price to you in 24hours.

CP-112UL

Features and Benefits

Over 700 Kbps data throughput for top performance

128-byte FIFO and on-chip H/W, S/W flow control

Universal PCI compatible with 3.3/5 V PCI and PCI-X

Serial communication speed up to 921.6 Kbps

Drivers provided for a broad selection of operating systems, including the latest Windows and Linux

Easy maintenance with on-board LED display

On-board 15 KV ESD and 2 KV optical isolation protection

Wide temperature model available for -40 to 85°C environment

Overview

Moxa's CP-112UL/UL-I series of multiport serial boards are designed to be used by industrial automation system integrators for long distance, multi-point, PC-based data acquisition applications. On-chip Automatic Data Direction Control for precision RS-485 communication requires precise timing control for enabling and disabling the line driver. The Moxa Turbo Serial Engine™ chip that powers the CP-112UL/UL-I boards comes with on-chip ADDC®, which makes RS-485 as easy to use as RS-232. The boards come with 2 RS-422/485 serial ports, each of which can achieve data rates up to 921.6 Kbps. In RS-485 mode, the serial port can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. For long distance RS-485 communication, 2 KV optical isolation protection is available to prevent equipment damage.

Drivers Provider for Windows, Linux, and Unix

Moxa continues to support a wide variety of operating systems, and the CP-112UL/UL-I boards are no exception. Reliable Windows COM Overviewand Linux/Unix TTY drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.
