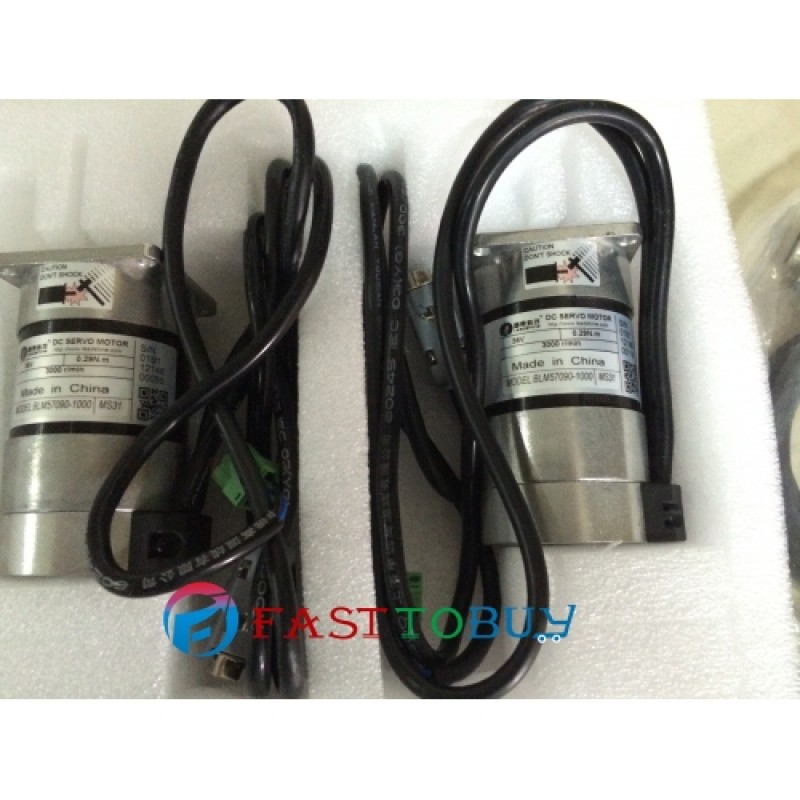

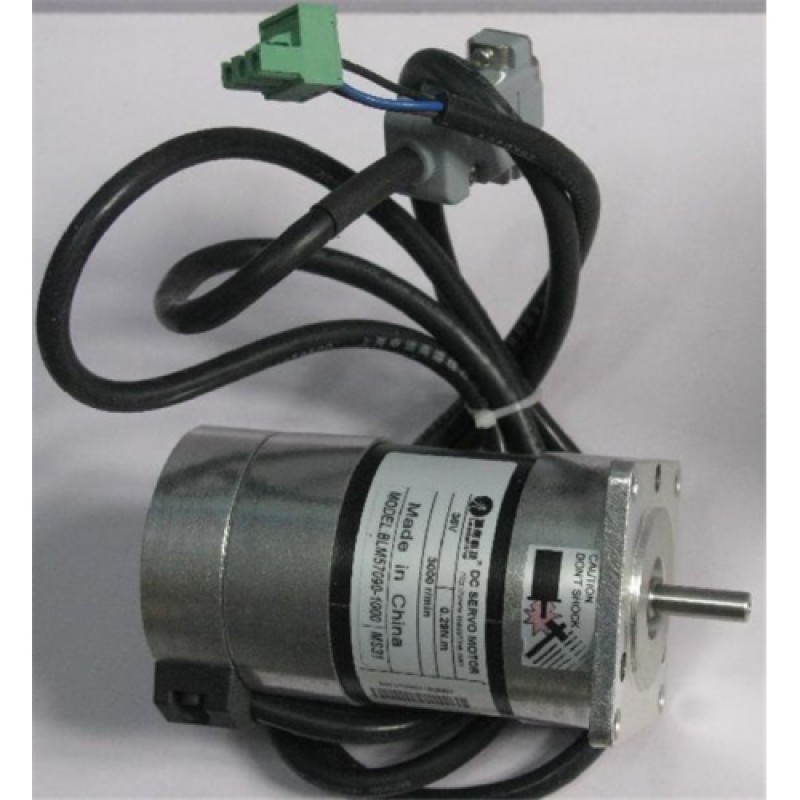

BLM57090-1000 |Leadshine 180W brushless DC servo motor 36VDC 3.45A original new
Description
Built with high quality materials, Leadshine BLM57090-1000 is a 180W brushless DC servo motor at industrial quality. BLM57090-1000 can provide smooth movement with low noise and motor heating in your motion control system. BLM57090-1000 is integrated with a 4,000 PPR (1000-line) incremental encoder.
When driven by Leadshine's AMT offered Leadshine brushless servo drives, it can output the high torque you need at continuous speed from 1 rpm to 3000 rpm. At the cost even lower than many stepper systems on the market, this solution is ideal to upgrade your system from steppers to servos, or from brushed DC servos to brushless Servos.
Features
NEMA 23 frame size
4000 CPR (1000-line) increamental
90W rated power
36 VDC rated voltage
41 oz-in rated torque / 123 oz-in peak
3000 RPM rated speed / 4000 peak
0.250-inch shaft
A, B signals
Quick acceleration
Accuracy to 1 count
High accuracy; smooth movement; quiet movement
Specifications
Model: | BLM57090-1000 |
Frame Size: | NEMA 23 |
Shaft Size: | 0.250-inch |
Continuous Torque: | 41 Oz-In |
Peak Torque: | 123 Oz-In |
Rated Power: | 90 Watts |
Rated Speed: | 3000 RPM |
Peak Speed: | 4000 RPM |
Rated Voltage: | 36 VDC |
Rated Current: | 3.45 A |
Peak Current: | 10.35 A |
Encoder Resolution: | 4000 CPR |
Back EMF: | 8.8 V/kRPM |
Torque Constant: | 11.87 oz-in / A |
Inductance: | 4.1 mH |
Resistance: | 1.35 Ohms |
Rotor Inertia: | 0.001685 oz-in-sec2 |
Pole Pairs: | 2 |
Shaft Size: | 0.250 Inch |
Winding connection: | Delta |
Hall Sensor: | 120 degree |
Radial Play: | 0.025 mm |
Axial Play: | 0.025 mm@460g |
Radial Load: | 75N@20mm from the flange |
Axial Load: | 15N |
Isolation Level: | B |
Isolation resistance: | 100M ohms |
Isolation Strength: | 500VDC for one minute |
Length: | 3.93 inches |
Weight: | 1.65 lbs |
Mechanical Specification
Unit: mm
1 inch = 25.4 mm
