- Stock: In Stock
- Model: 0.29NM
- Weight: 1.50kg
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.
Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
General Specifications:
Winding connection: Delta connection
Hall Sensor: 120
Pole Pairs (-): 2
Phase: 3
Shaft Radial Play: 0.025 mm
Shaft Axial Play: 0.025 mm@460g
Allowable radial load: 75N@20mm from the flange
Allowable axial load: 15N
Isolation Level: Class B
Isolation Strength: 500VDC for one minute
Isolation Resistance: 100M ohms
Specifications
| BLM57025 | BLM57050 | BLM57090 | BLM57130 | BLM57180 | 57BL180 |
rated voltage | 24VDC | 24VDC | 36VDC | 36VDC | 36VDC | 36VDC |
rated power | 25W | 50W | 90W | 130W | 180W | 180W |
nominal torque | 0.08NM | 0.16NM | 0.29NM | 0.41NM | 0.57NM | 0.43NM |
peak torque | 0.24NM | 0.48NM | 0.87NM | 1.23NM | 1.71NM | 1.27NM |
rated speed | 3000RPM | 3000RPM | 3000RPM | 3000RPM | 3000RPM | 3000RPM |
Rated armature current | 1.6A | 3A | 3.45A | 5.3A | 6.7A | 7A |
Peak Current | 4.8A | 9A | 10.35A | 15.9A | 20A | 20.5A |
Torque Const. | 0.05 N.M/A | 0.053 N.M/A | 0.084 N.M/A | 0.078 N.M/A | 0.085 N.M/A | 0.063 N.M/A |
Back EMF Const. | 5.2 V/RPM | 5.55 V/RPM | 8.8 V/RPM | 8.2 V/RPM | 8.9 V/RPM | 6.6 V/RPM |
Resistance | 1.73 ohms | 0.88 ohms | 1.35 ohms | 0.63 ohms | 0.9 ohms | 0.35 ohms |
Inductance | 3.36mh | 2.2 mh | 4.1 mh | 2.17 mh | 2 mh | 1 mh |
Inertia | 30 kgm2x10-4 | 75 kgm2x10-4 | 119 kgm2x10-4 | 173 kgm2x10-4 | 230 kgm2x10-4 | 230 kgm2x10-4 |
Motor Length | 45mm | 55mm | 75mm | 95mm | 115mm | 115mm |
Weight | 0.25Kg | 0.5 Kg | 0.75 Kg | 1 Kg | 1.25 Kg | 1.25 Kg |
Descriptions

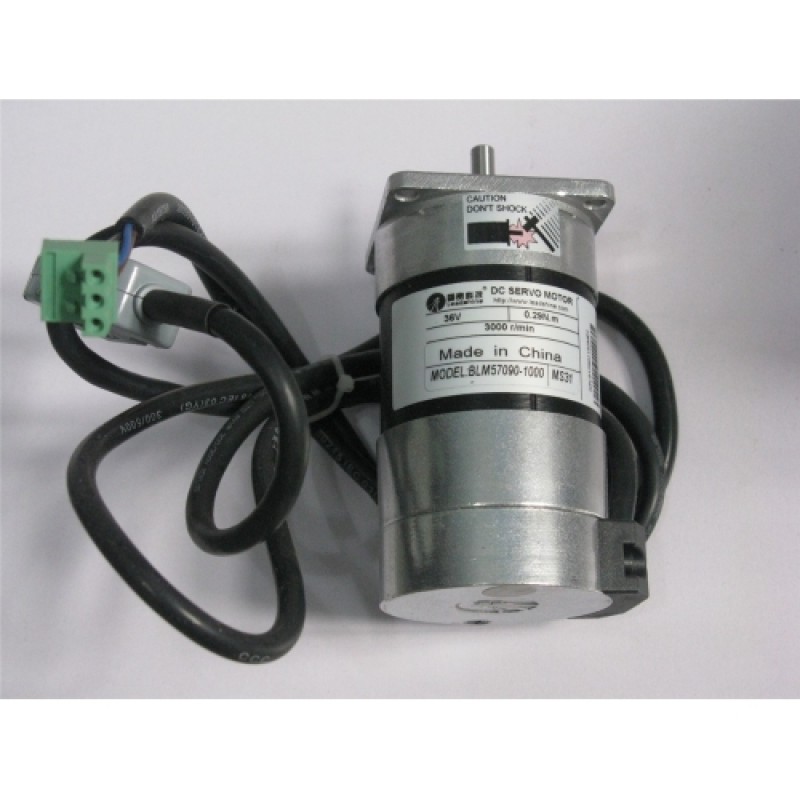

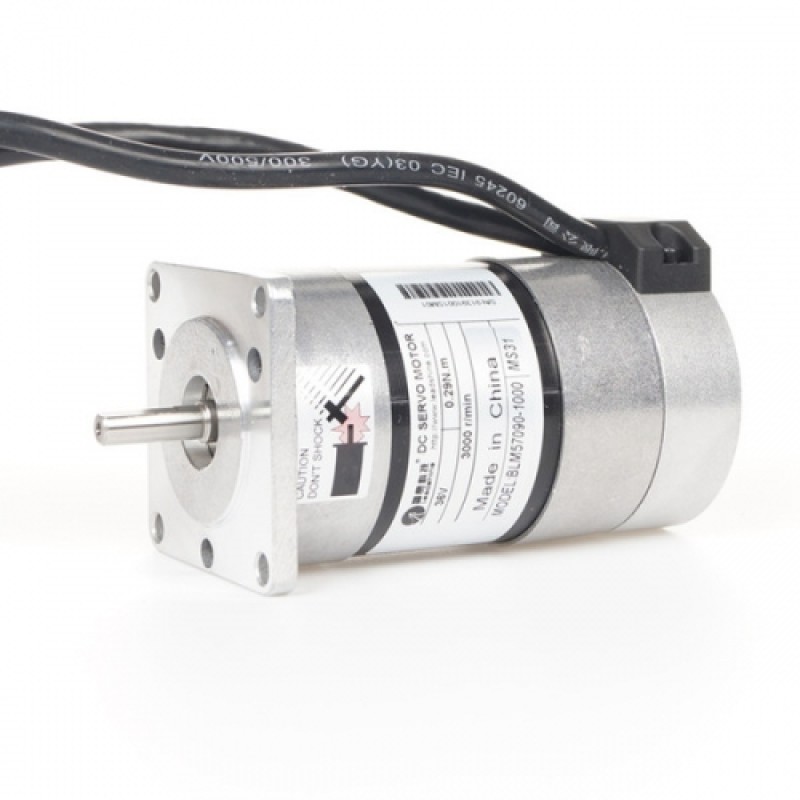

Leadshine's BLM series motors are highly cost-effective brushless DC servo motors. Rated speed of BLMseries motors is 3000rpm, and that of 57BL series is 4000 rpm. Standardmodel includes a standard 1000 line encoder with differential encoder signals(A, B), and Hall Sensors with standard Hall signals (U, V, W).When driven by Leadshine ACS series servo drives, the BLM and 57BL series motors can meet requirements of many applications requiring speed from as low as 1 rpm to as high as 4000 rpm. They are able to offer AC-servo-like performance,such as high speed, high precision, low motor noise and low heating performance, while at the cost of normal stepping systems.BLM series motors are flange mounted motors, and mounting are compatible with NEMA23 stepping motors.The 57BL series are screw mounted motors.
Mechanical Specifications(Unit:mm 1 inch = 25.4 mm)
