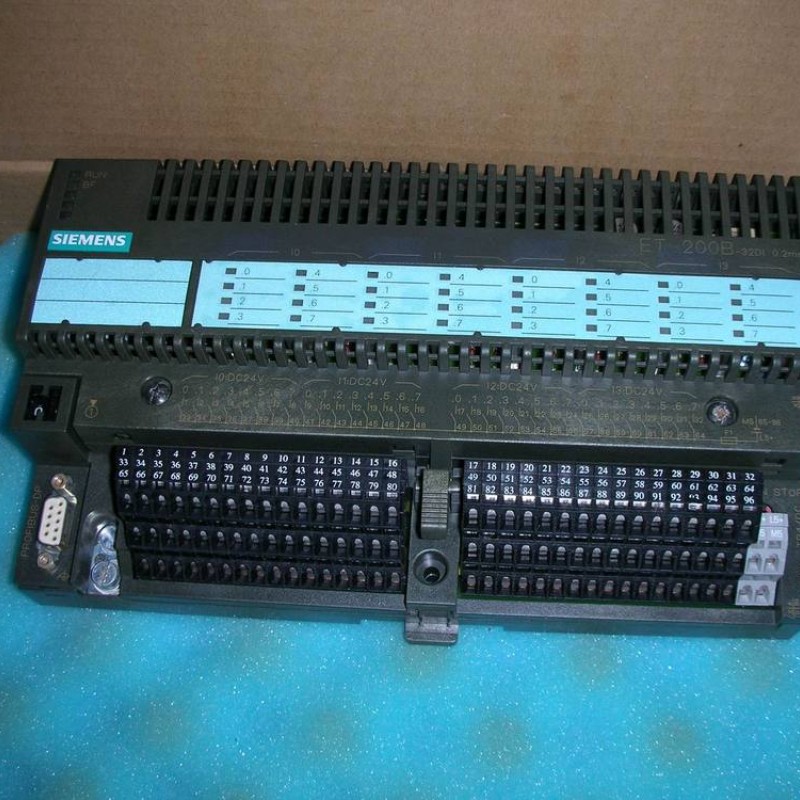

6ES7131-0BL10-0XB0 SIEMENS DIGITAL ELECTRONIC MODULE used one

Supply voltage

24 V DC

Yes; L5+; value at t < 0.5 s: 35 V

permissible range, lower limit (DC)

18.5 V

permissible range, upper limit (DC)

30.2 V

Input current

Current consumption, typ.

70 mA; From L5+; logic

Current consumption, max.

1000 mA; from L5+; sensor

I²t

0.05 A²·s; with starting current inrush

Encoder supply

Output voltage

18.5 to 30 V

Output current, rated value

1 A

Power losses

Power loss, typ.

4.8 W

Hardware configuration

Rack

Required terminal block

TB2/DC, TB2-4/DC, TB4/DC, TB4-4/DC

Digital inputs

Number/binary inputs

32

Input voltage

Rated value, DC

24 V

for signal "0"

-30 to +5 V

for signal "1"

13 to 30 V

Input current

for signal "1", typ.

4 mA; At 24 V min. 2 mA

Input delay (for rated value of input voltage)

for standard inputs

at "0" to "1", max.

0.2 ms

Cable length

Cable length unshielded, max.

100 m

Encoder

Connectable encoders

2-wire sensor

Yes

Permissible quiescent current (2-wire sensor), max.

1.5 mA

Interfaces

PROFIBUS DP

Transmission rate, max.

12 Mbit/s

FREECE capability

Yes

Communication functions

Bus protocol/transmission protocol

PROFIBUS DP

Interrupts/diagnostics/status information

Diagnostics indication LED

Bus fault BF (red)

Yes

Run mode RUN (green)

Yes

Status indicator digital input (green)

Yes

Galvanic isolation

between electronic block and PROFIBUS DP

Yes

Galvanic isolation digital inputs

Galvanic isolation digital inputs

No

Degree and class of protection

IP20

Yes

Ambient conditions

Operating temperature

horizontal installation, min.

0 °C

horizontal installation, max.

60 °C; 40°C for other mountings

Air pressure

permissible range, min.

795 hPa

permissible range, max.

1080 hPa

Relative humidity

Operation, min.

95 %

Operation, max.

15 %; RH class 2 in accordance with IEC 1131-2

Vibrations

Operation, checked according to IEC 60068-2-6

Yes; IEC 68, Part 2-6; 10 to 57 Hz; (constant amplitude 0.075 mm); 57 to 150 Hz; (constant acceleration 1 g)

Shock test

checked according to IEC 60068-2-27

Yes; IEC 68, Part 2-27; half-sine, 15 g, 11 ms

Connection method

Inputs/outputs

Screw-type and spring-loaded terminals, permanent wiring; 3 and 4-wire connection

Dimensions

Width

235 mm; EB and TB

Height

130 mm; EB and TB

Depth

60 mm; EB and TB

Weight

Weight, approx.

800 g; EB and TB
